You are here: Home / Fencing / Design and siting / Designs

Designs

Printed from: https://finalhbks.asgoodasready.com/fencing/design-and-siting/designs/

25 fence designs are shown on the following pages, with recommended uses, and approximate prices per metre of materials. Prices are only a guide, and will vary with area and supplier. A table comparing the costs is here.

(All prices for comparison only: materials only ex-VAT)

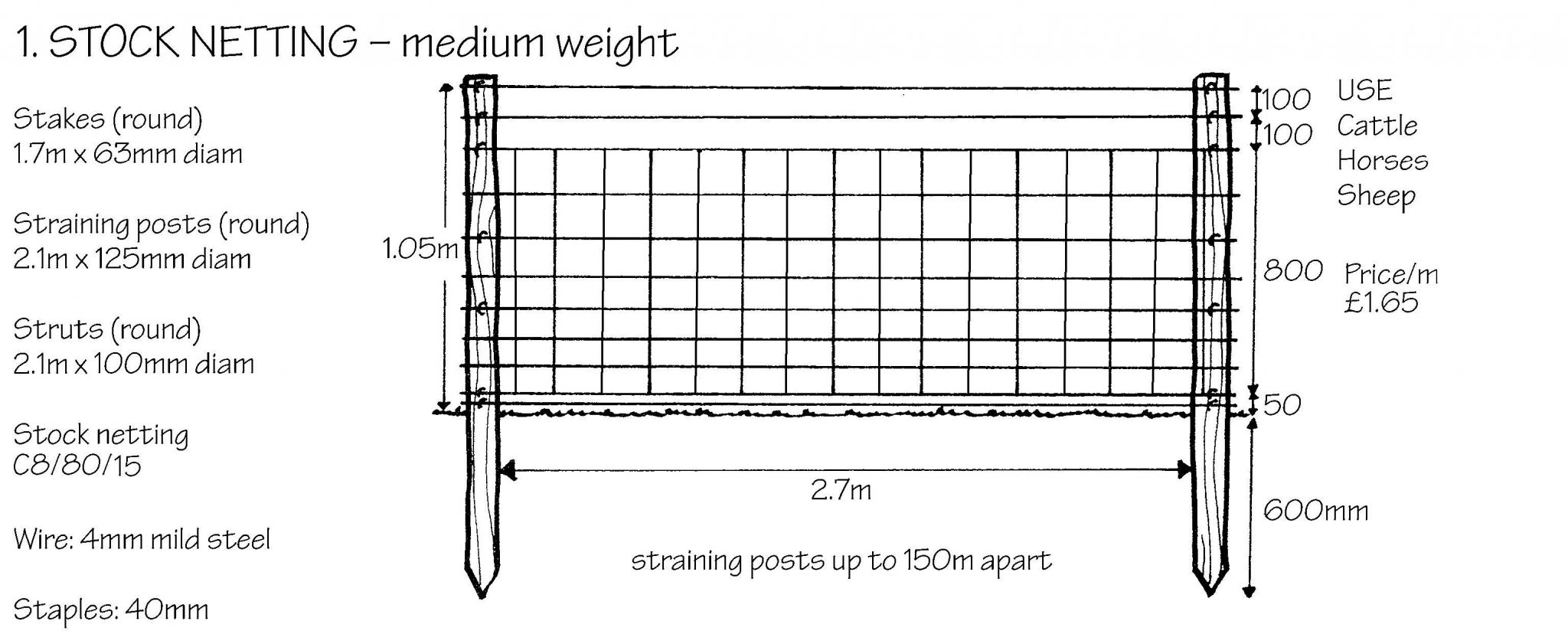

Stock netting - medium weight

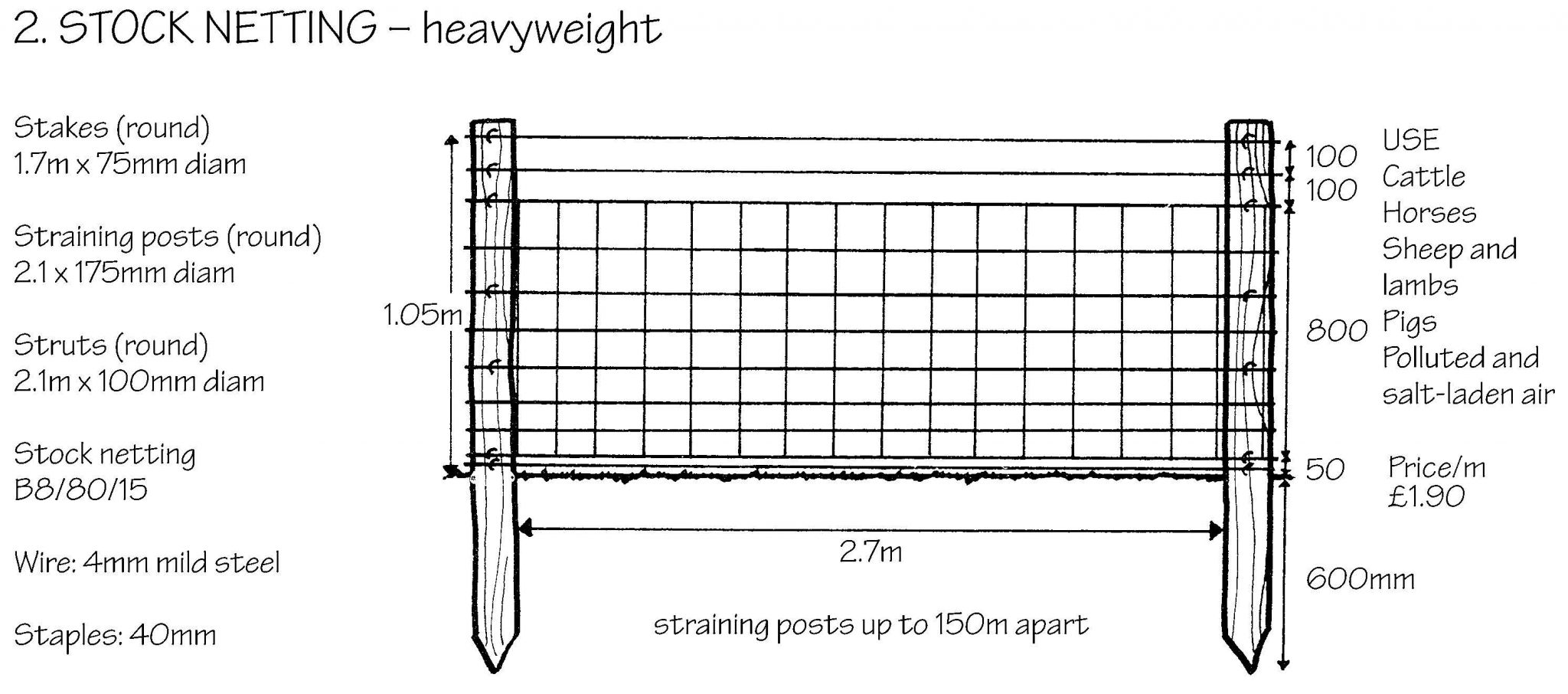

Stock netting - heavyweight

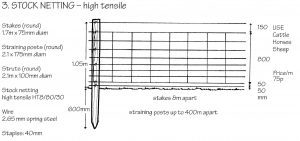

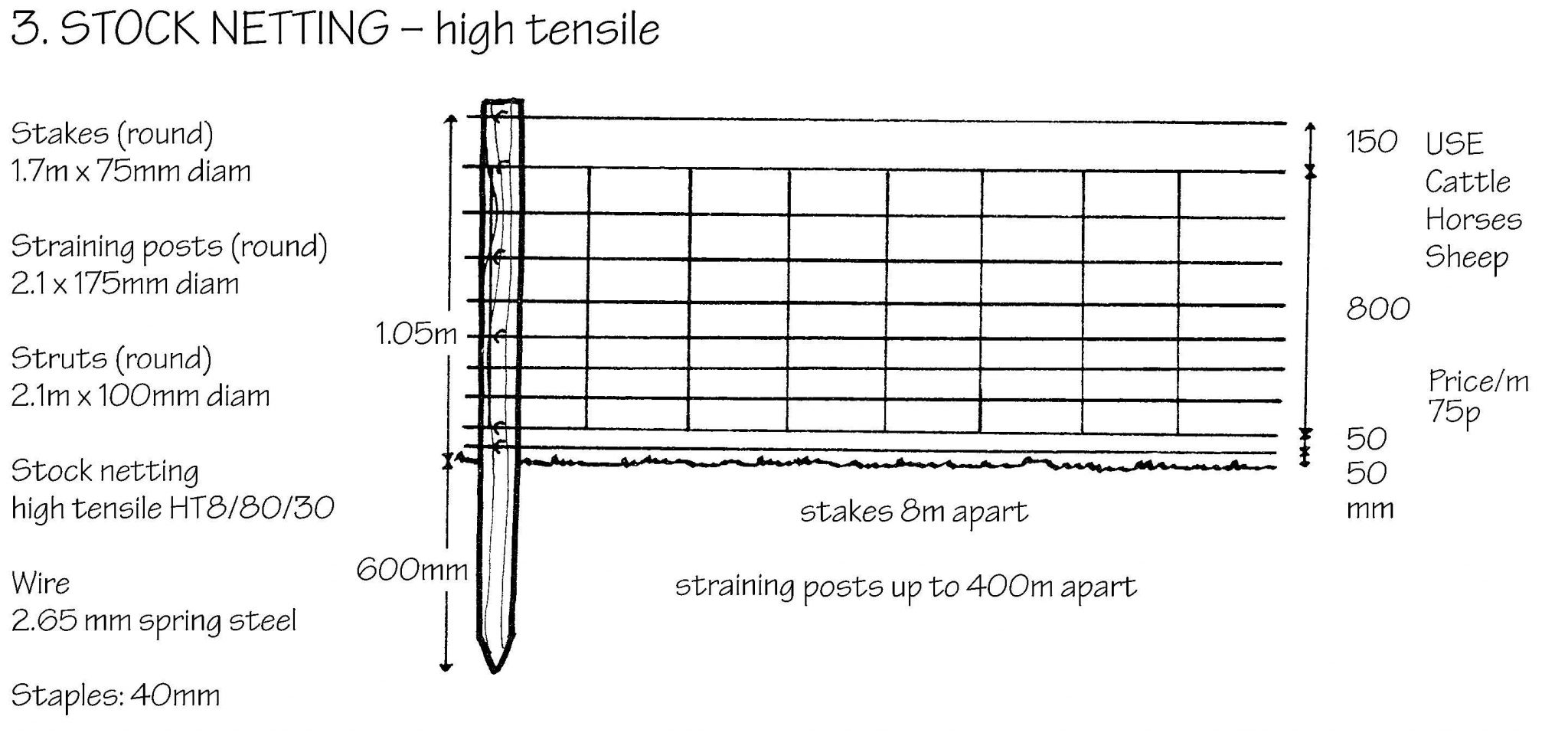

Stock netting - high tensile

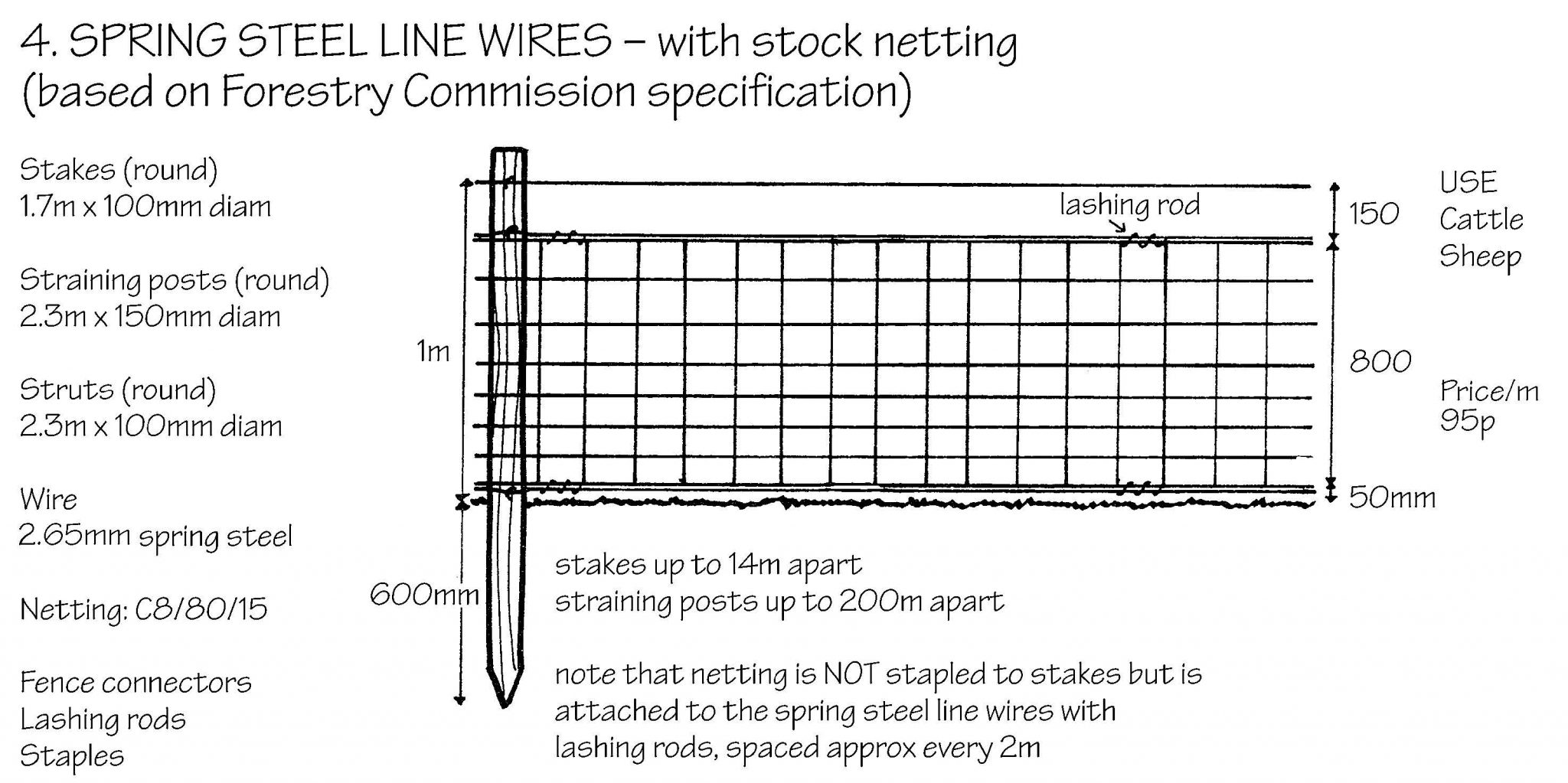

Spring steel line wires - with stock netting

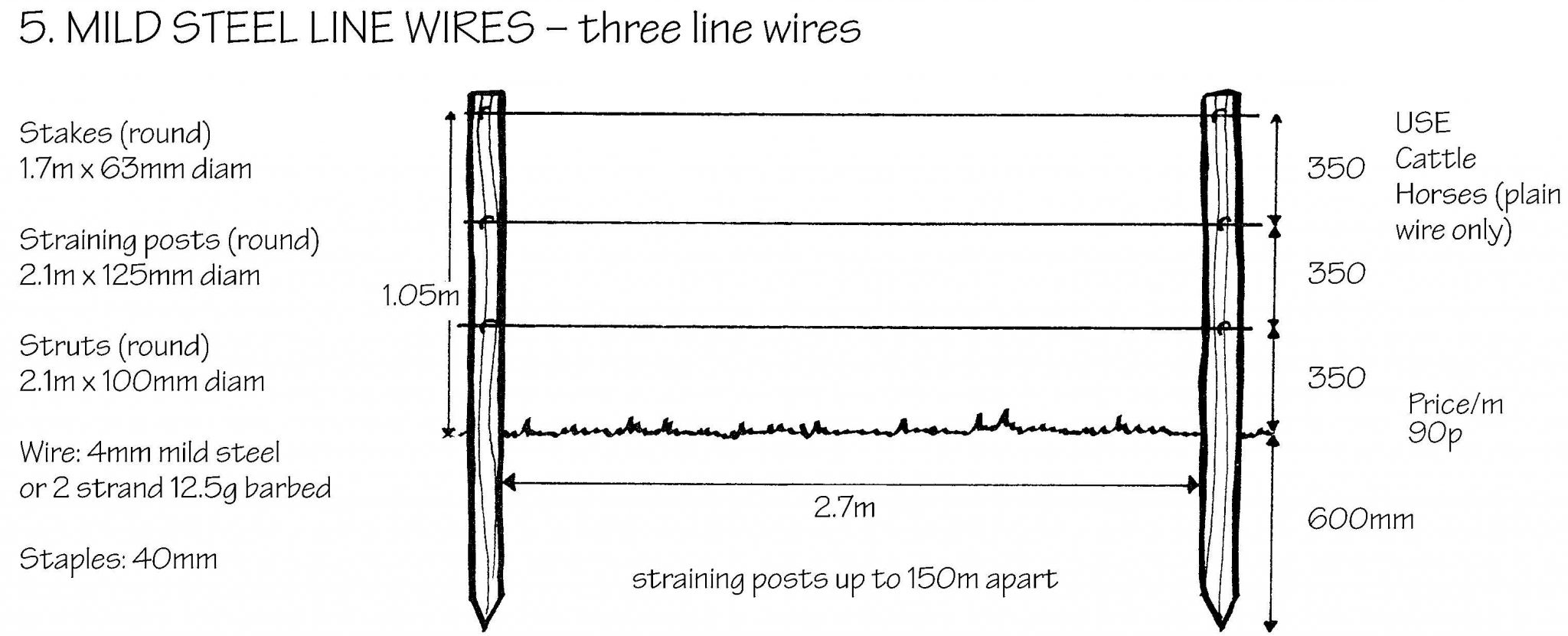

Mild steel line wires - three line wires

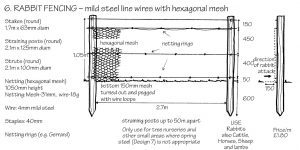

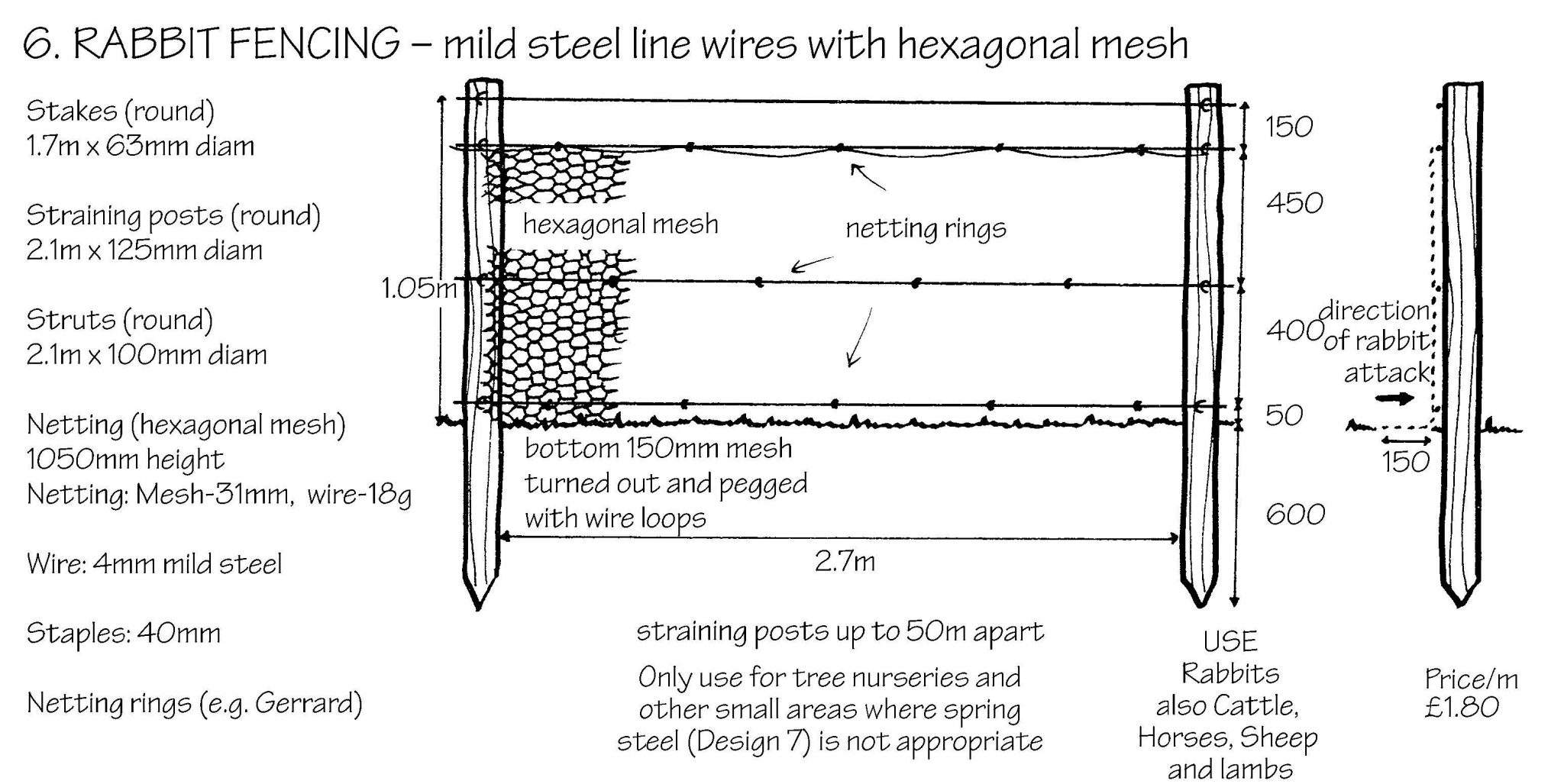

Rabbit fencing - mild steel line wires with hexagonal mesh

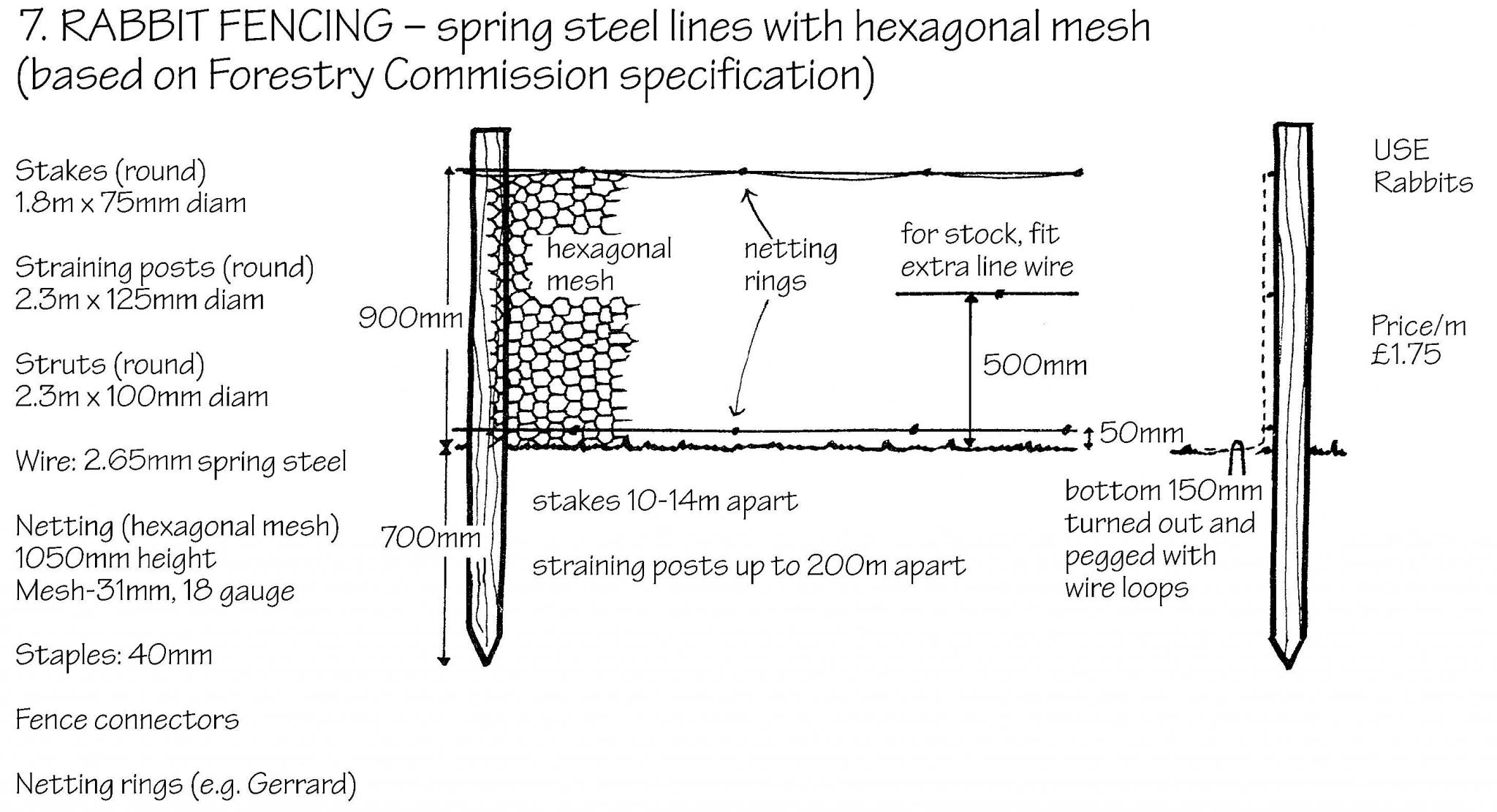

Rabbit fencing - spring steel line wires with hexagonal mesh

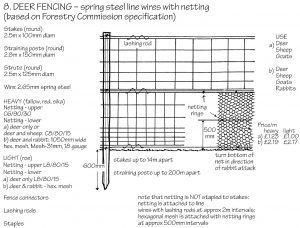

Deer fencing - spring steel line wires with netting

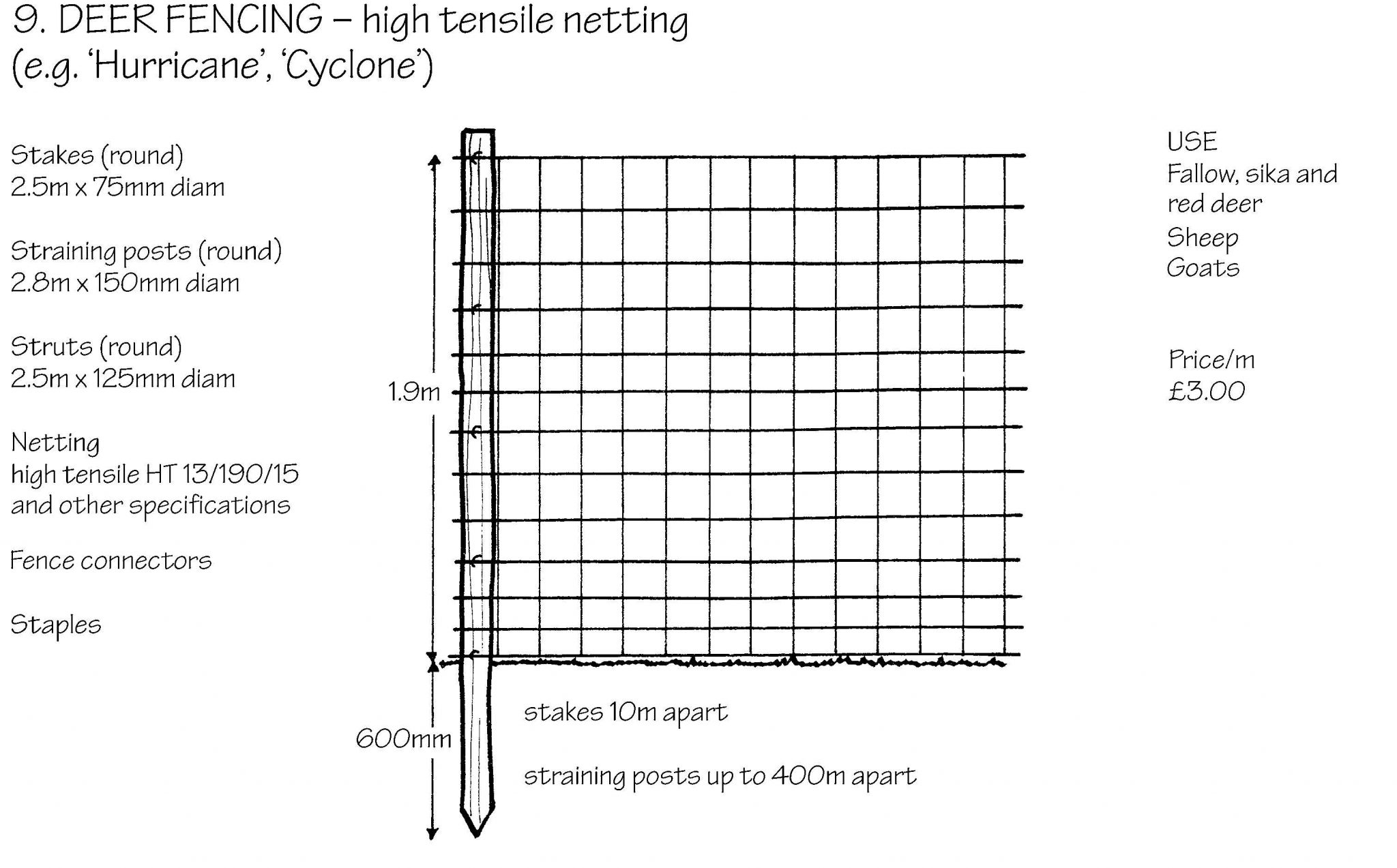

Deer fencing - high tensile netting

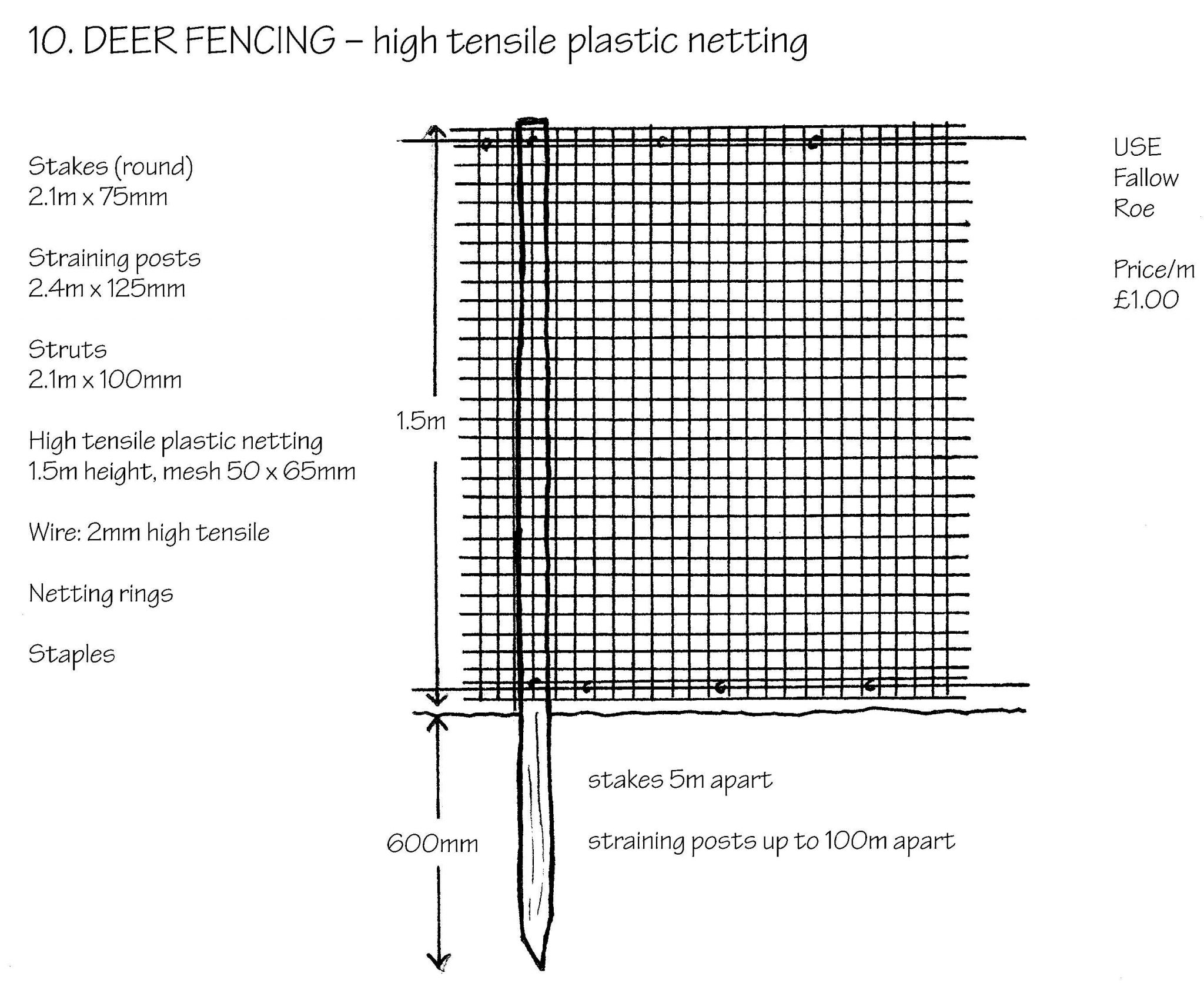

Deer fencing - high tensile plastic netting

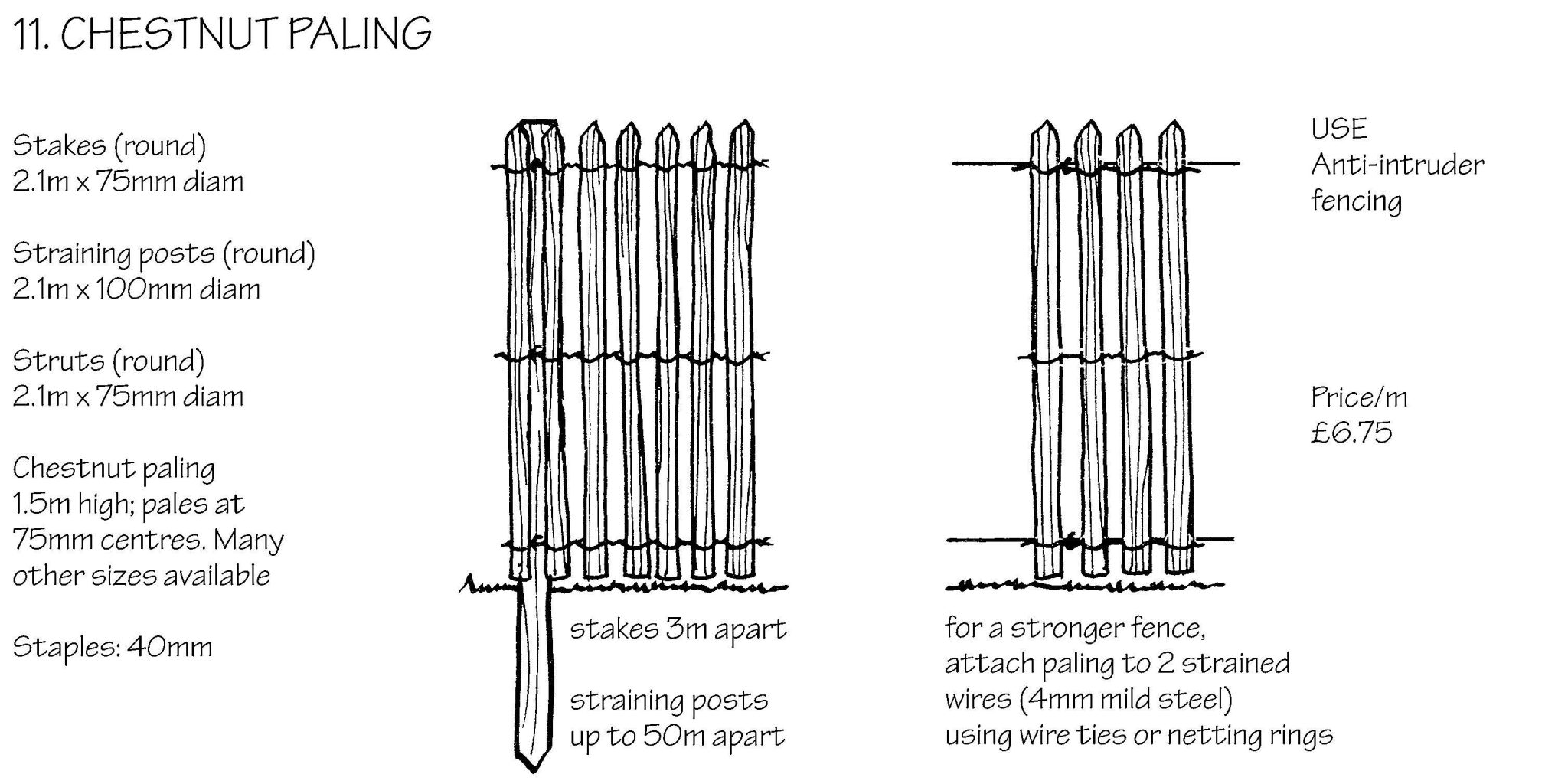

Chestnut paling

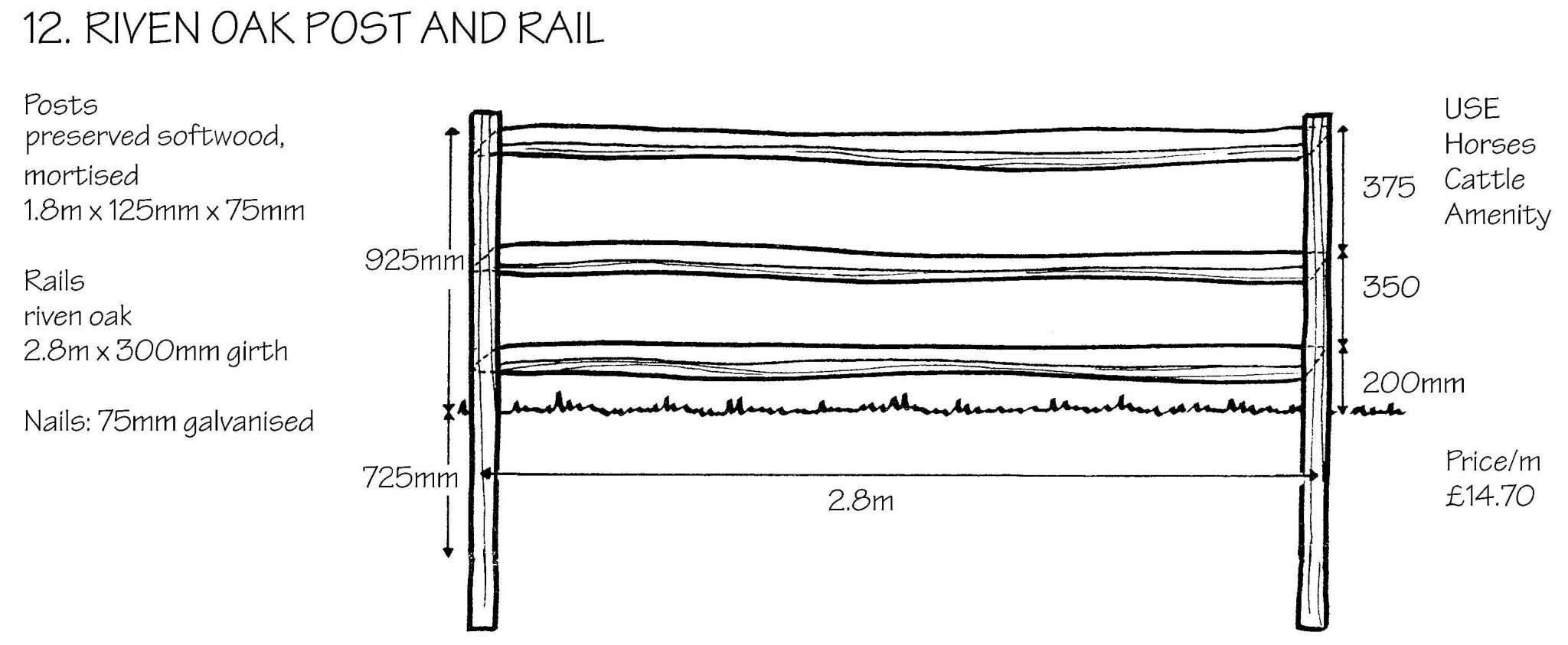

Riven oak post and rail

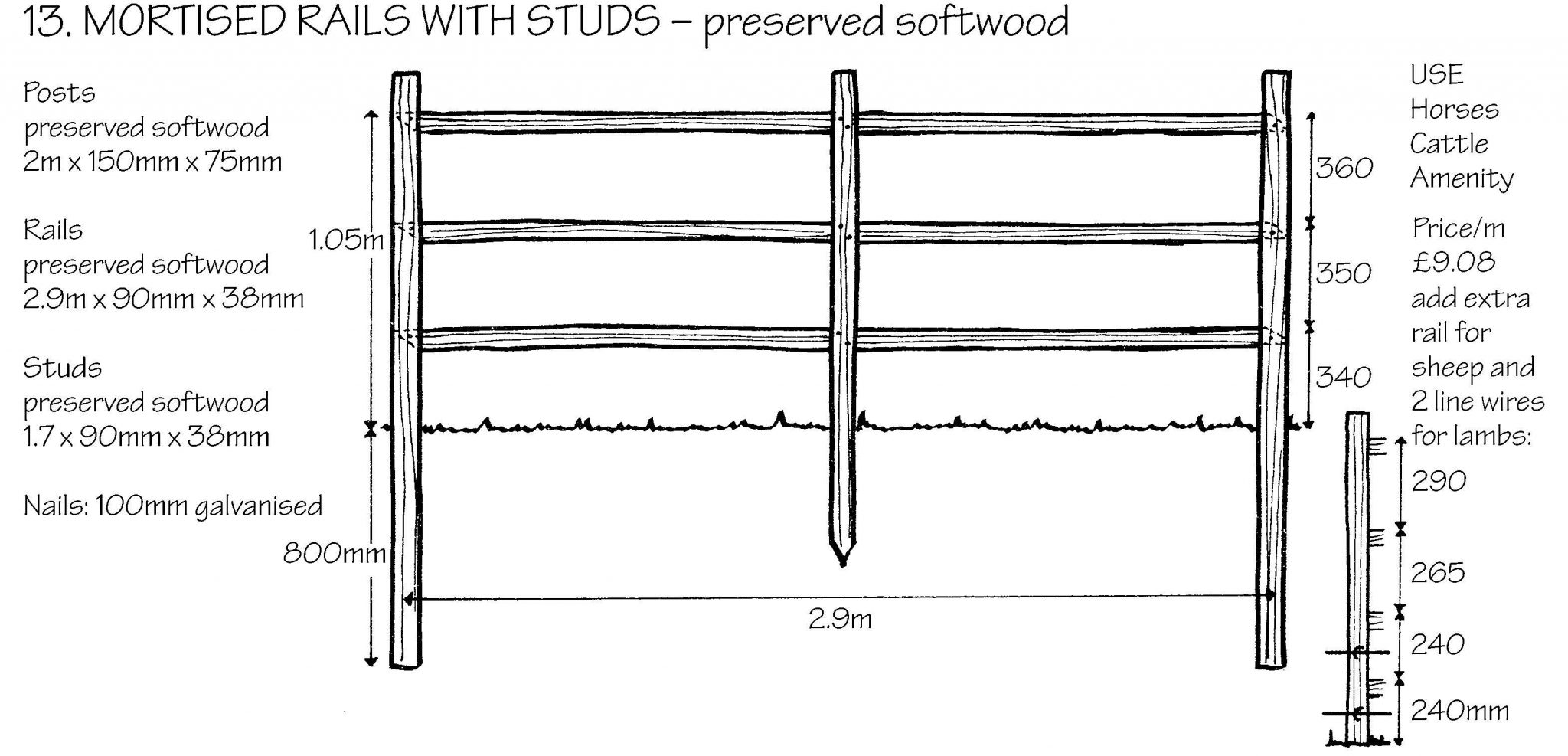

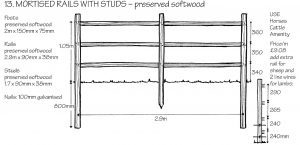

Mortised rails with studs - preserved softwood

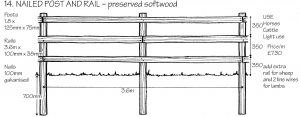

Nailed post and rail - preserved softwood

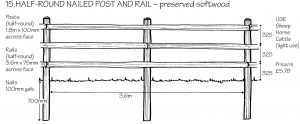

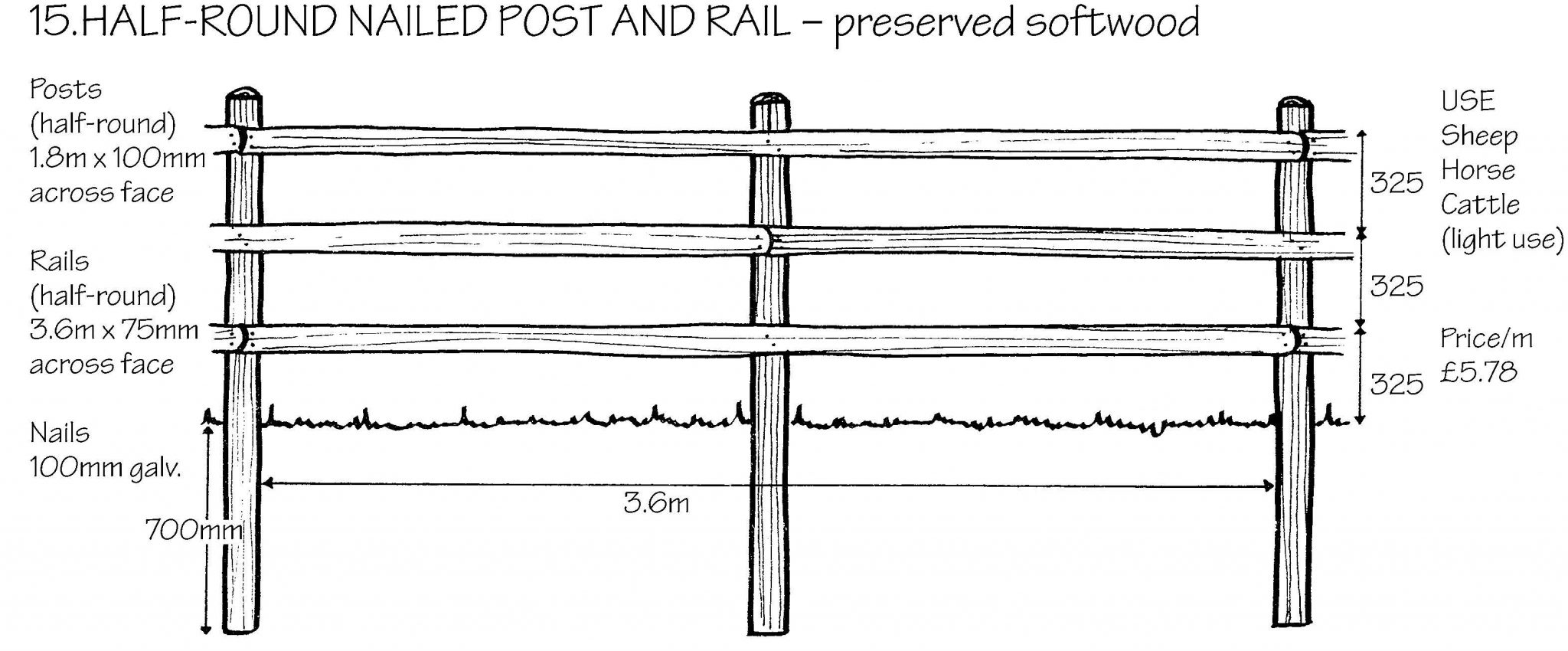

Half round post and rail - preserved softwood

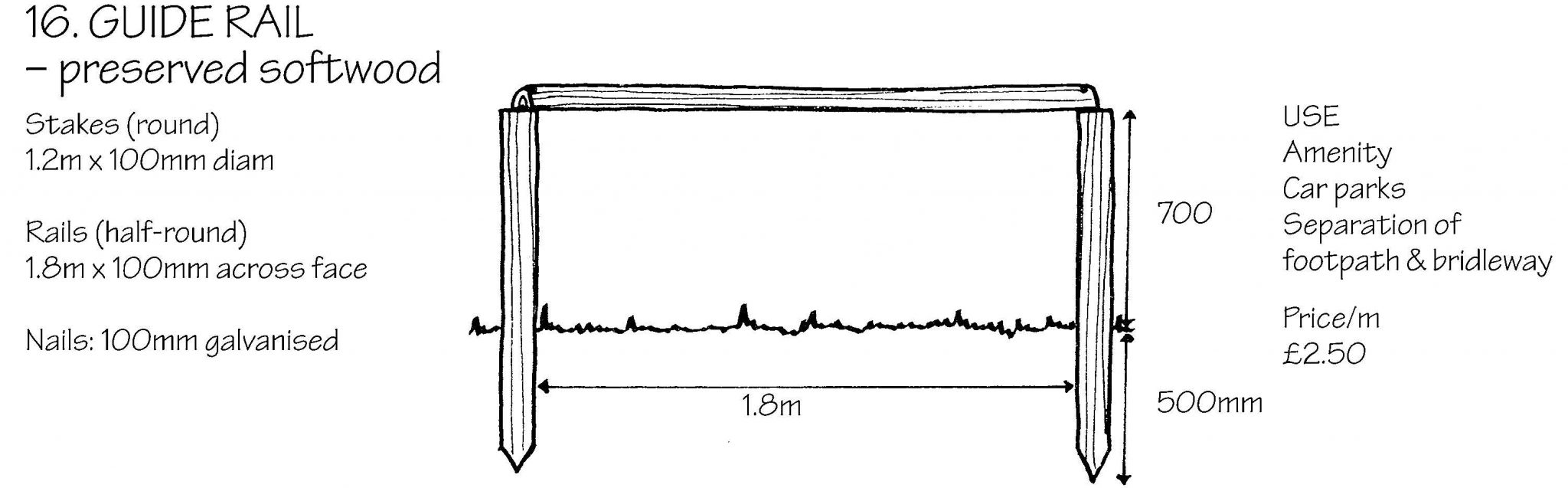

Guide rail - preserved softwood

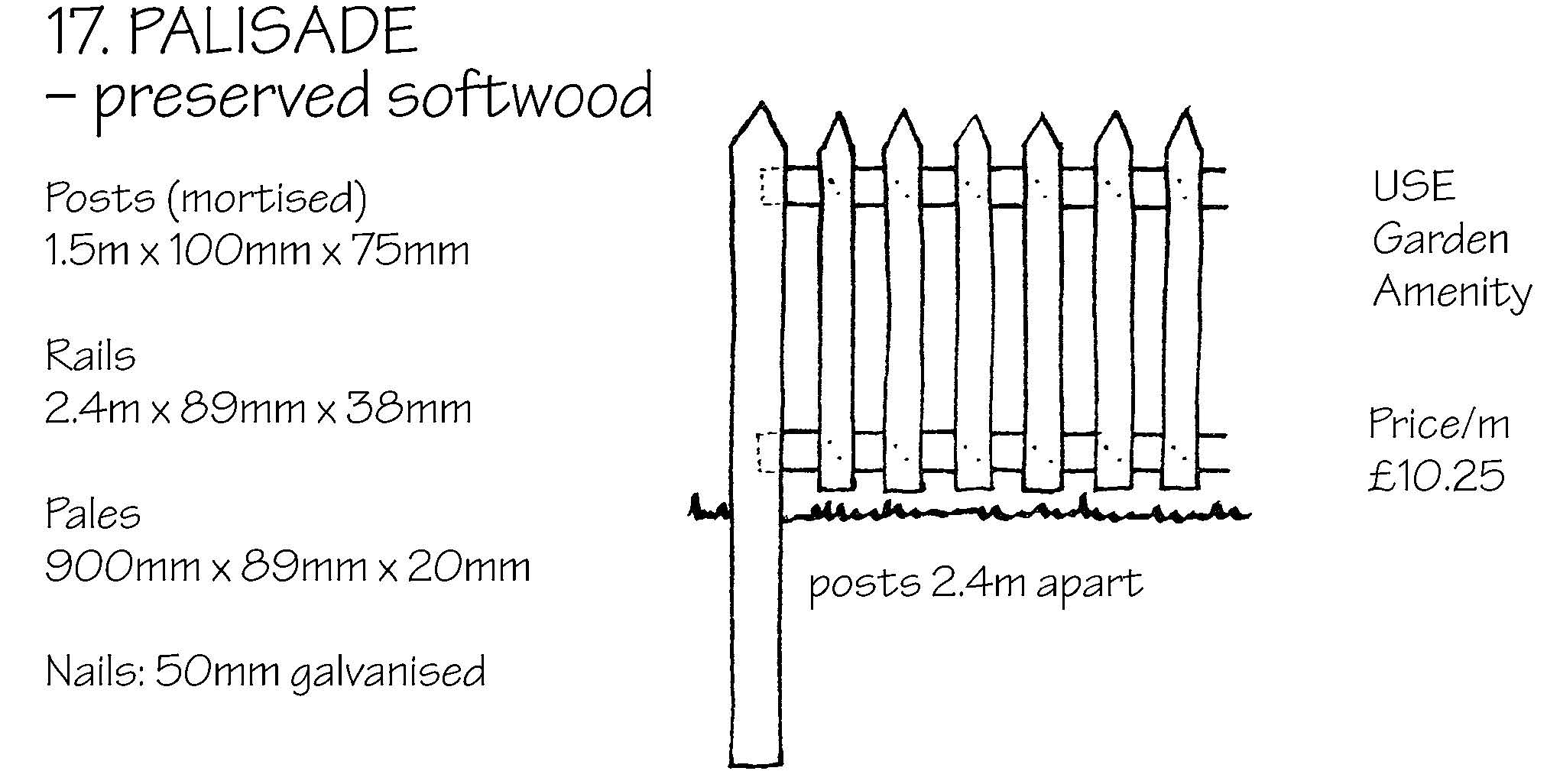

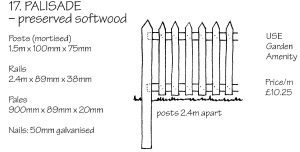

Palisade - preserved softwood

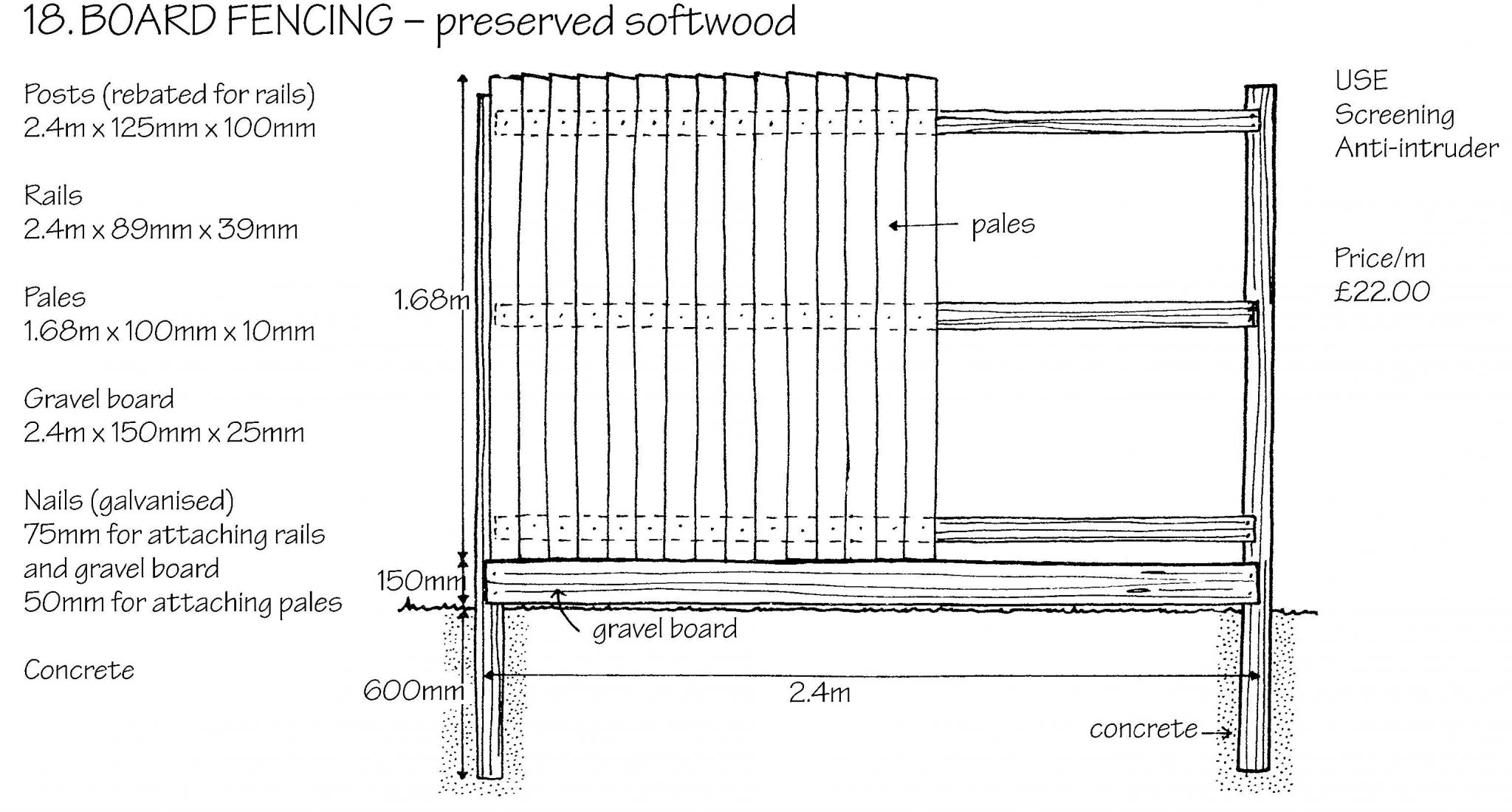

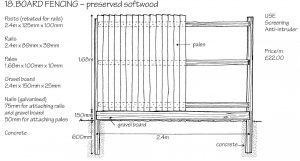

Board fencing - preserved softwood

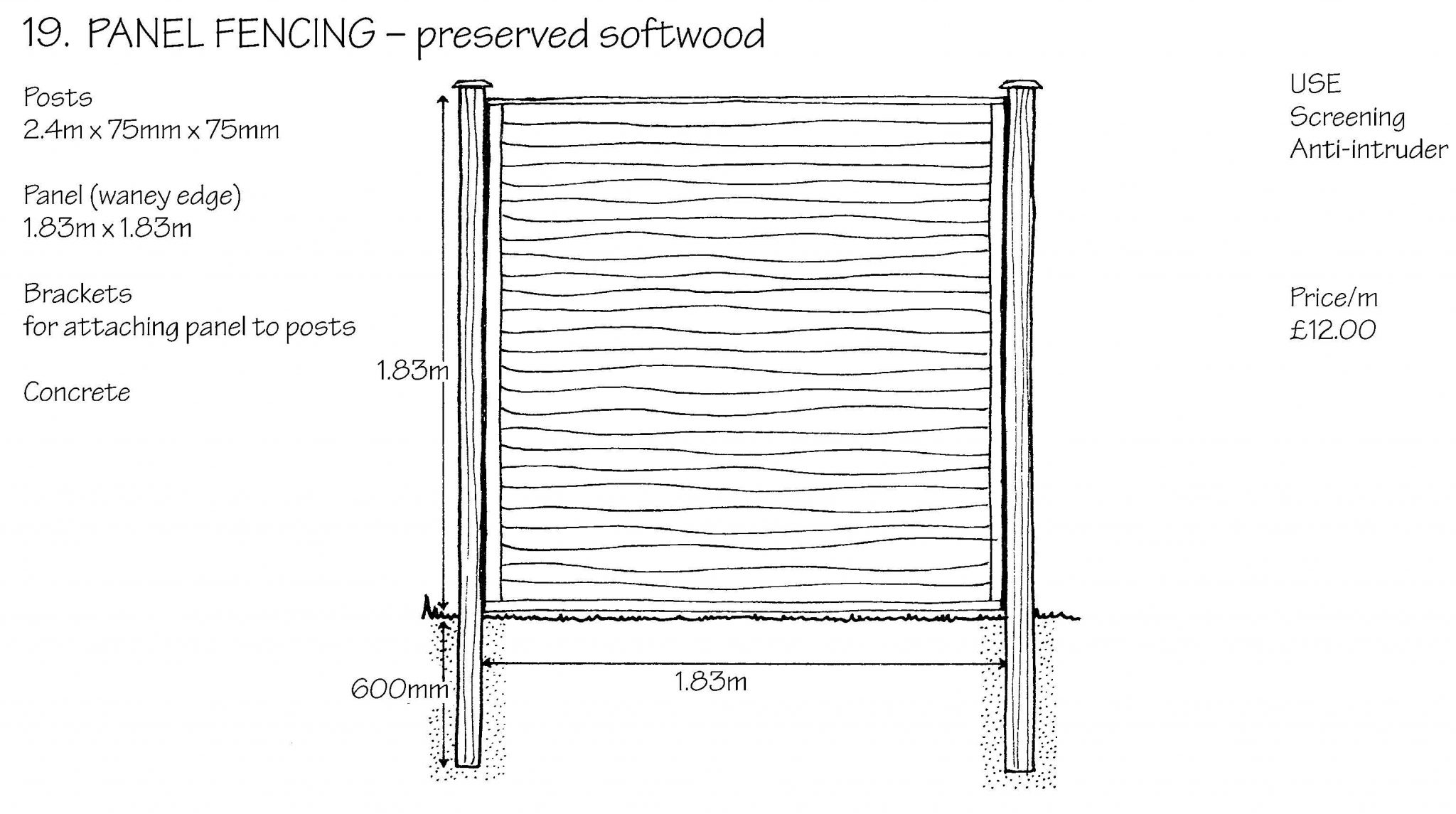

Panel fencing - preserved softwood

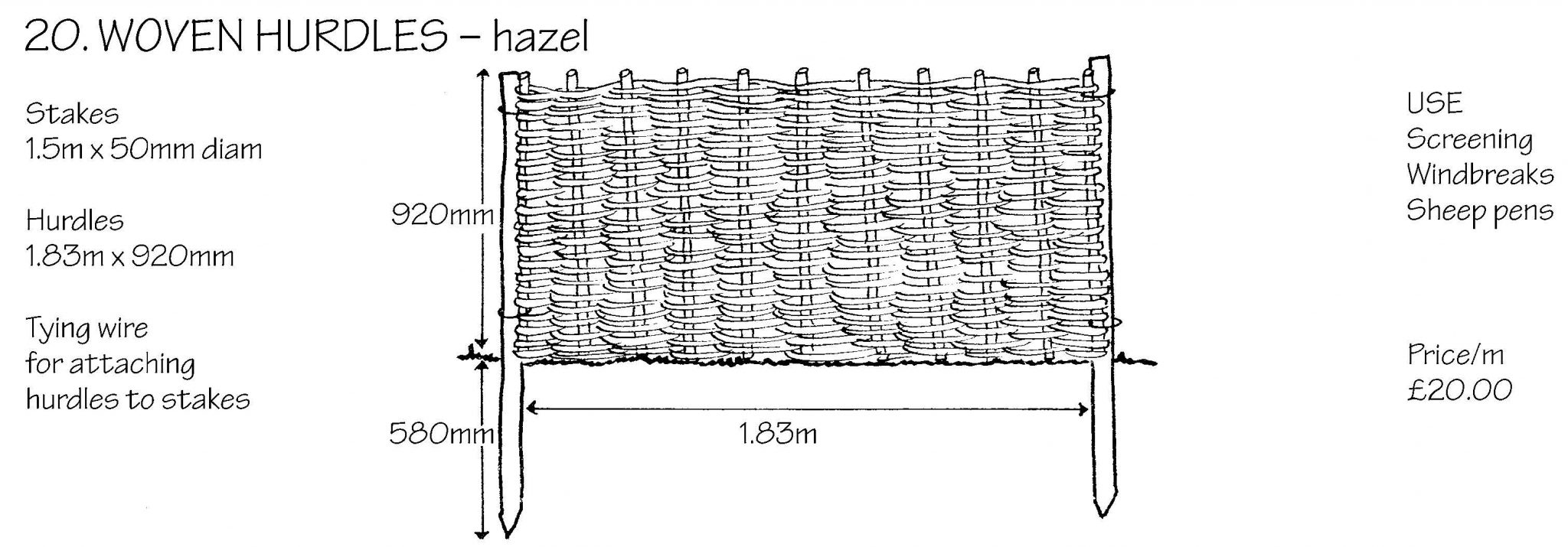

Woven hurdles - hazel

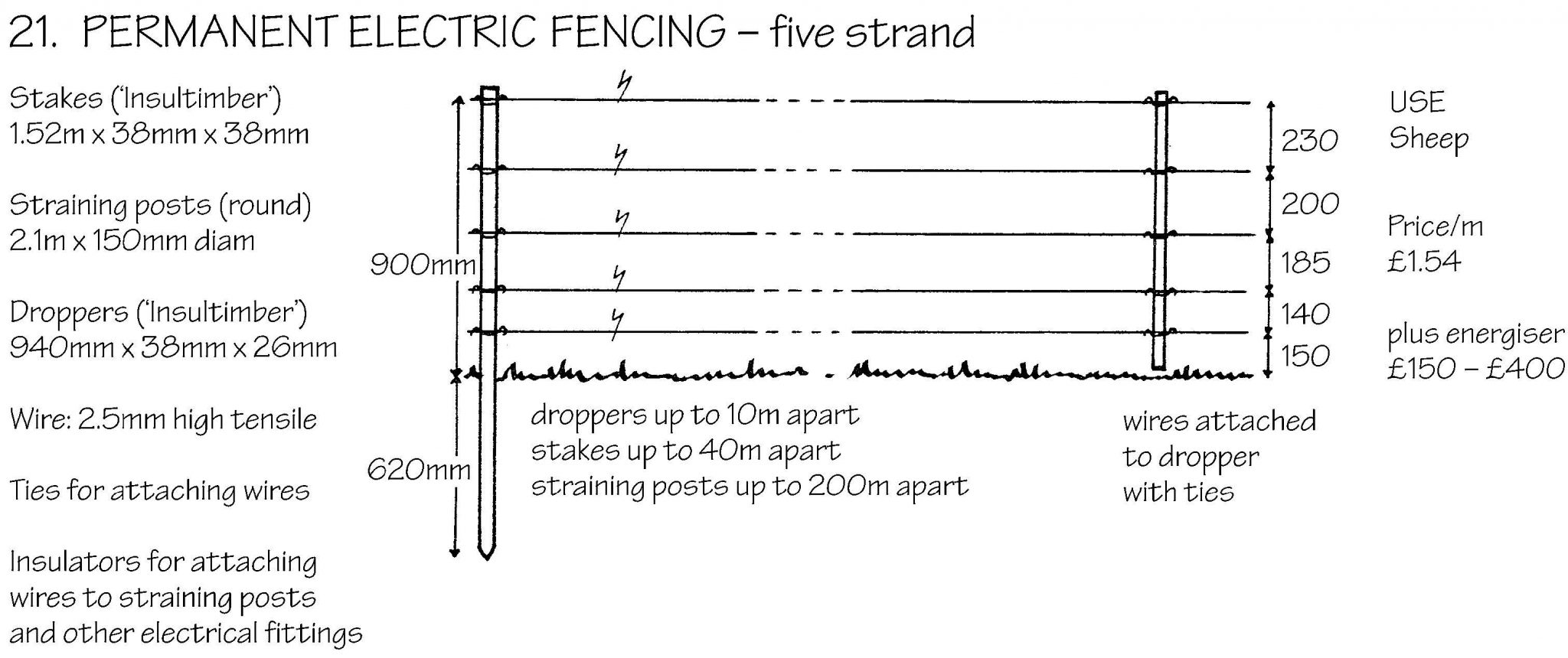

Permanent electric fence - five strand

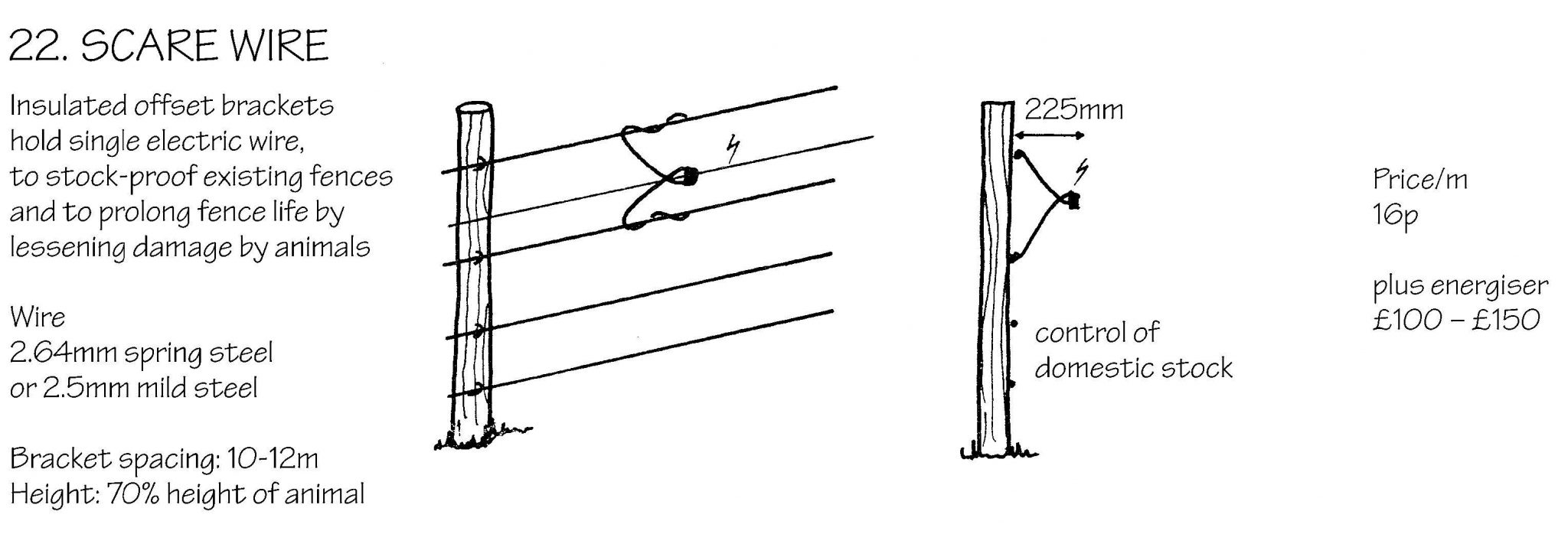

Scare wire

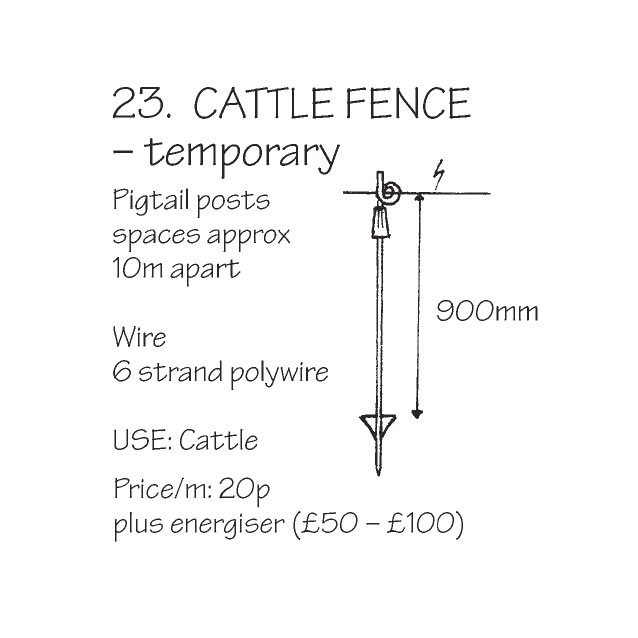

Cattle fence - temporary

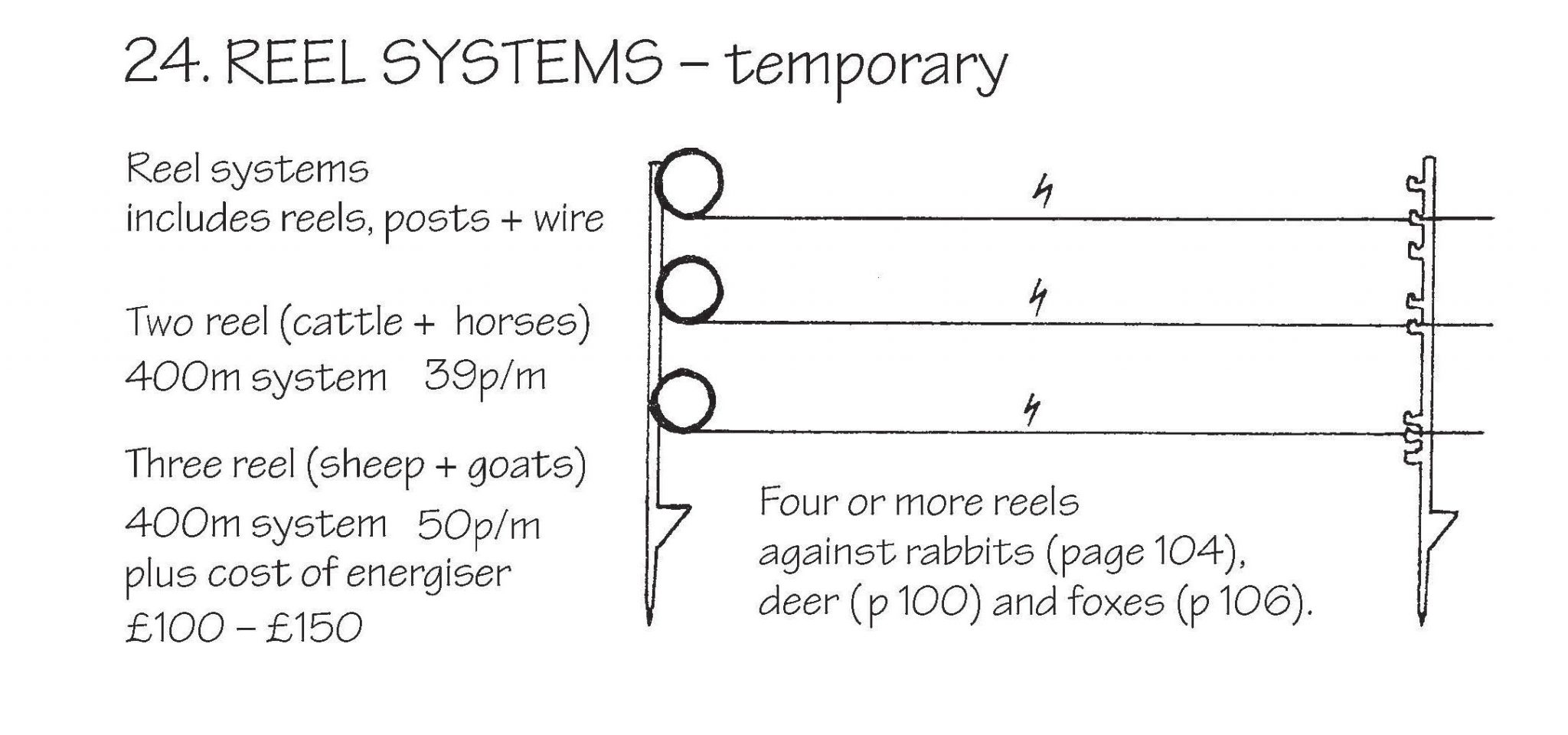

Reel systems - temporary

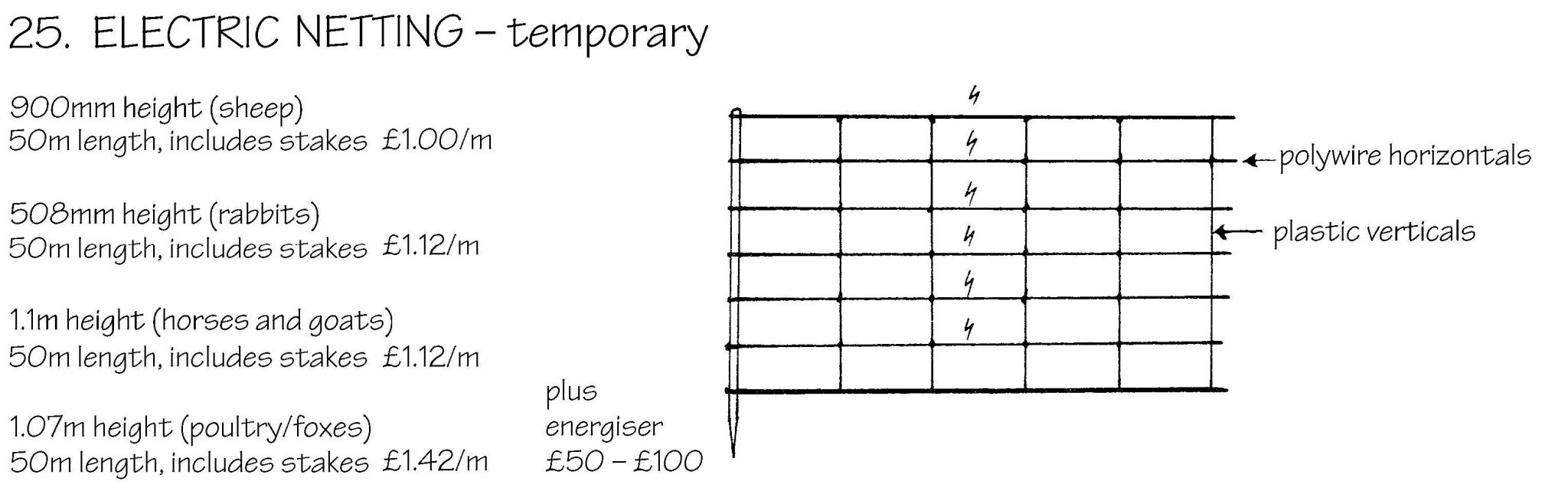

Electric netting - temporary
